EUI Injector Upgrade Kit HK860
This EUI Injector Upgrade Kit HK860 is fitted to the Cummins PT Injector Calibrator HA290 to permit the testing of Cummins Celect electronic unit injectors and therefore enhances the capability of the HA290.
Main Features
- Includes two adapters, a fuelling sleeve and three push rods to mount and drive the Cummins electronic unit injectors, for the following engine types:
- Type 1: N14
- Type 2: L10
- Type 3: M11

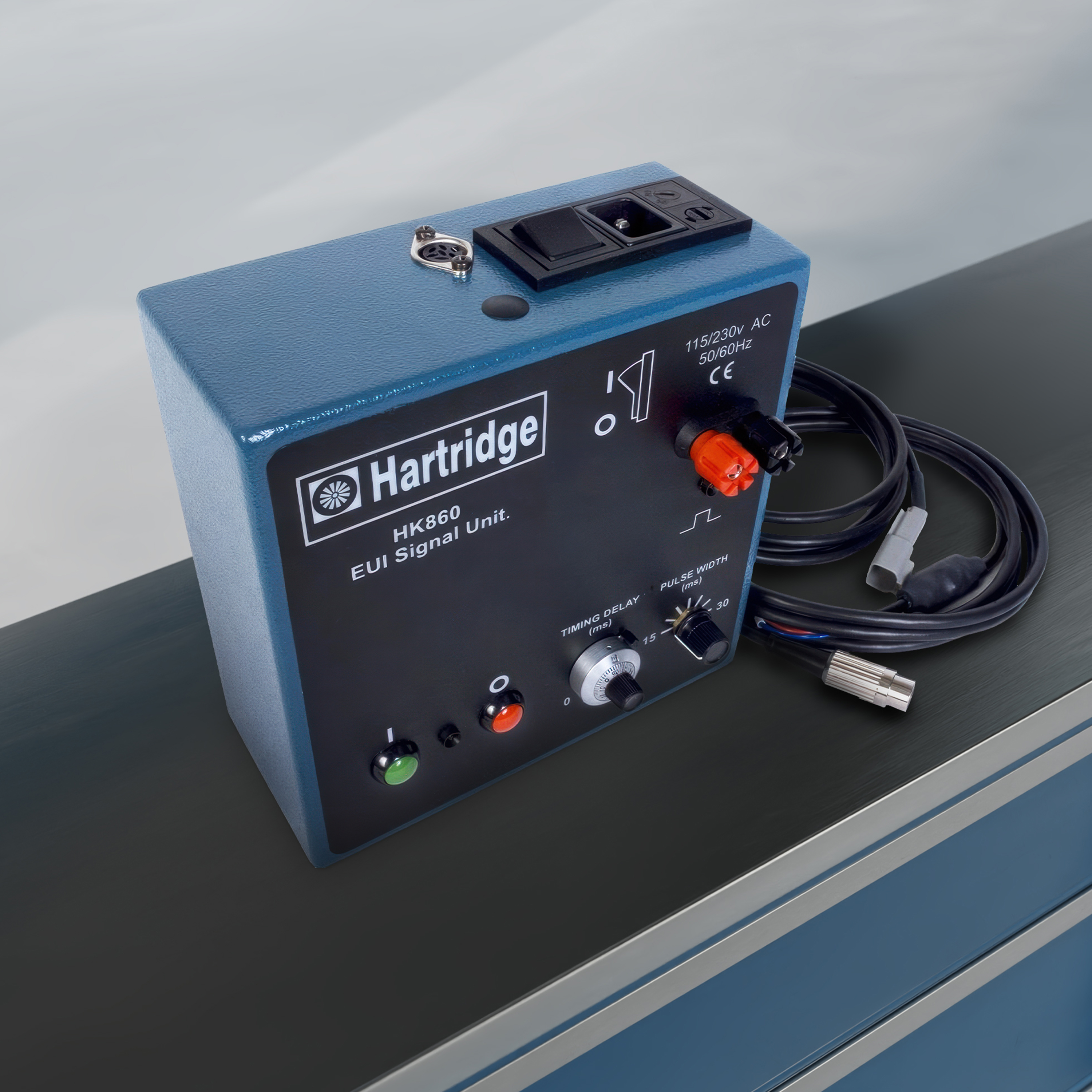

- Includes an electronic signal unit to deliver a variable pulse (15ms – 30ms) to the injector
- Power supply is 240/120V ac 50/60Hz typical current consumption 0.5 amp
Benefits of the EUI Injector Upgrade Kit HK860
- At a low cost it provides HA290 users with additional Cummins coverage
- Enables users to accurately diagnose problems with individual Cummins Celect EUI injectors
- Easy to use and to install to the HA290
Ordering
- HK860 - the HK860 kit can be factory fitted to new Cummins PT Injector Calibrators HA290
- YDB438 - a 0.426 Cam YDB438 is required to drive the Cummins EUI injectors
Whatever your application and need, contact Hartridge today and discover how we can help drive you forward.
